HBase基本操作

常用HBase Shell命令

创建表

1 2	/* 创建表，cf1,cf2为列族名 */ create 'table_name','cf1','cf2',...

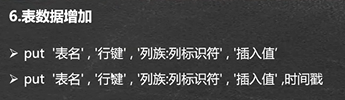

写入数据

1 2	/* 插入或更新数据，cf为列族名，cq为列名，value为要写入的数据 */ put 'table_name', 'row_key', 'cf:cq', 'value'[, timestamp]

读取数据

/* 读取单行数据 */
get 'table_name', 'row_key'

/* 读取列族数据 */
get 'table_name', 'row_key', 'cf'

/* 读取单元格数据 */
get 'table_name', 'row_key', 'cf:cq'

删除数据

/* 删除列 */
delete 'table_name', 'row_key', 'cf:cq'[, 'timestamp]

/* 删除行 */
deleteall 'table_name', 'row_key'

全表扫描

1 2	/* 查看表的全部数据 */ scan 'table_name'

计算表的行数

1	count 'table_name'

其他常用命令

/* 使表有效 */
enable 'table_name'

/* 使表无效 */
disable 'table_name'

/* 删除表 */
drop 'table_name'

/* 查看所有表名 */
list

/* 查看所有可用命令 */
help

HBase Shell基本操作

查看当前namespace，创建一个新的namespace “test”，并设置最大建表数为10。（提示：hbase.namespace.quota.maxtables）

HBase中没有库的概念，namespace就相当于库的概念，一个namespace中包含了很多table

查看当前namespace
1. 使用list_namespace查看所有命名空间
1
2
3
4
5
6
hbase:006:0> list_namespace
NAMESPACE
default
hbase
2 row(s)
Took 0.0864 seconds
可以发现当前有两个命名空间default和hbase，default命名空间为当前默认的命名空间，hbase命名空间为存放系统表的命名空间。
1. 使用list_namespace_tables查看指定命名空间下的所有table
1
2
3
4
5
6
7
hbase:007:0> list_namespace_tables 'hbase'
TABLE
meta
namespace
2 row(s)
Took 0.0709 seconds
=> ["meta", "namespace"]
可以发现hbase下有两个表meta表与namespace表，namespace表存放了与命名空间相关的元数据的表。meta存放了表和相关region元数据的表。

创建test的namespace

使用create_namespace创建命名空间

hbase:002:0> create_namespace 'test'
Took 1.5677 seconds

hbase:003:0> list_namespace
NAMESPACE
default
hbase
test
3 row(s)
Took 0.0722 seconds

可以看到创建好的test namespace

通过describe_namespace查看命名空间配置

hbase:004:0> describe_namespace 'test'
DESCRIPTION
{NAME => 'test'}
Quota is disabled
Took 0.3294 seconds

可以看到test namespace下的所有配置信息

通过alter_namespace修改命名空间配置

设置最大建表数为10

hbase:009:0> alter_namespace 'test', {METHOD => 'set', 'hbase.namespace.quota.maxtables' => '10'}
Took 0.2673 second

hbase:010:0> describe_namespace 'test'
DESCRIPTION
{NAME => 'test', hbase.namespace.quota.maxtables => '10'}
Quota is disabled
Took 0.0595 seconds

可以看到配置已经变更

创建一个表test01，有两个列族f1,f2，设置f1的最大版本数为5，设置表的预分区为3个；

create 'test:test01', {NAME=>'f1', VERSIONS=>5}, 'f2', SPLITS => ['10','20','30']

hbase:011:0> create 'test:test01', {NAME=>'f1', VERSIONS=>5}, 'f2', SPLITS => ['10','20','30']
Created table test:test01
Took 4.3689 seconds
=> Hbase::Table - test:test01

通过desc查看表结构

desc 'test:test01'

hbase:012:0> desc 'test:test01'
Table test:test01 is ENABLED
test:test01
COLUMN FAMILIES DESCRIPTION
{NAME => 'f1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '5', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

{NAME => 'f2', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

2 row(s)
Quota is disabled
Took 0.2004 seconds

创建另一个表test02，有两个列族g1，g2；

create 'test:test02', 'g1', 'g2'

hbase:013:0> create 'test:test02', 'g1', 'g2'
Created table test:test02
Took 1.1753 seconds
=> Hbase::Table - test:test02

hbase:017:0> desc 'test:test02'
Table test:test02 is ENABLED
test:test02
COLUMN FAMILIES DESCRIPTION
{NAME => 'g1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

{NAME => 'g2', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

2 row(s)
Quota is disabled
Took 0.0637 seconds

查看namespace test 中的表；

使用list查看

hbase:018:0> list
TABLE
test:test01
test:test02
2 row(s)
Took 0.0113 seconds
=> ["test:test01", "test:test02"]

删除表test02中的g2列；

alter 'test:test02', NAME=>'g2', METHOD=>'delete'

或者alter 'test:test02, 'delete'=>'g2'

hbase:019:0> alter 'test:test02', NAME=>'g2', METHOD=>'delete'
Updating all regions with the new schema...
1/1 regions updated.
Done.
Took 2.4014 seconds

hbase:020:0> desc 'test:test02'
Table test:test02 is ENABLED
test:test02
COLUMN FAMILIES DESCRIPTION
{NAME => 'g1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

1 row(s)
Quota is disabled
Took 0.0640 seconds

修改表test02的的属性MAX_FILESIZE为256128256；

alter 'test:test02', MAX_FILESIZE='256128256'

hbase:022:0> alter 'test:test02', MAX_FILESIZE='256128256'
(hbase):22: warning: already initialized constant MAX_FILESIZE
Updating all regions with the new schema...
1/1 regions updated.
Done.
Took 1.9905 seconds

hbase:023:0> desc 'test:test02'
Table test:test02 is ENABLED
test:test02
COLUMN FAMILIES DESCRIPTION
{NAME => '256128256', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1
', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION =>
'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE =
> '65536', REPLICATION_SCOPE => '0'}

{NAME => 'g1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

2 row(s)
Quota is disabled
Took 0.0680 seconds

为表test02增加一列s1，设置s1的最大版本数为5；

alter 'test:test02', {NAME=>'s1', VERSIONS=>'5'}

hbase:001:0> alter 'test:test02', {NAME=>'s1', VERSIONS=>'5'}
Updating all regions with the new schema...
1/1 regions updated.
Done.
Took 3.4812 seconds

hbase:002:0> desc 'test:test02'
Table test:test02 is ENABLED
test:test02
COLUMN FAMILIES DESCRIPTION
{NAME => '256128256', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1
', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION =>
'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE =
> '65536', REPLICATION_SCOPE => '0'}

{NAME => 'g1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

{NAME => 's1', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '5', KEEP
_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE',
 TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '6553
6', REPLICATION_SCOPE => '0'}

3 row(s)
Quota is disabled
Took 0.0701 seconds

删除表test02；

disable 'test:test02'

drop 'test:test02'

hbase:004:0> disable 'test:test02'
Took 0.7600 seconds

hbase:005:0> drop 'test:test02'
Took 0.4076 seconds

hbase:006:0> list
TABLE
test:test01
1 row(s)
Took 0.0251 seconds
=> ["test:test01"]
hbase:007:0>

为表test01添加两行数据：

r01 f1:name zhang
r01 f1:num 10
r01 f2:addr shanghai
r02 f1:name wang
r02 f2:addr hangzhou

put 'test:test01', 'r01', 'f1:name', 'zhang'
put 'test:test01', 'r01', 'f1:num', '10'
put 'test:test01', 'r01', 'f1:addr', 'shanghai'
put 'test:test01', 'r02', 'f1:name', 'wang'
put 'test:test01', 'r02', 'f2:addr', 'hangzhou'

全表扫描数据；

scan 'test:test01'

hbase:013:0> scan 'test:test01'
ROW                        COLUMN+CELL
 r01                       column=f1:addr, timestamp=2022-04-24T11:01:28.736, value=shanghai
 r01                       column=f1:name, timestamp=2022-04-24T11:00:11.237, value=zhang
 r01                       column=f1:num, timestamp=2022-04-24T11:01:28.584, value=10
 r02                       column=f1:name, timestamp=2022-04-24T11:01:28.795, value=wang
 r02                       column=f2:addr, timestamp=2022-04-24T11:01:30.250, value=hangzhou
2 row(s)
Took 0.0399 seconds

查看r02行的name列数据；

get 'test:test01', 'r02', 'f1:name'

hbase:014:0> get 'test:test01', 'r02', 'f1:name'
COLUMN                     CELL
 f1:name                   timestamp=2022-04-24T11:01:28.795, value=wang
1 row(s)
Took 0.0387 seconds

删除r02行f2列的数据；

delete 'test:test01', 'r02', 'f2'

1 2	hbase:015:0> delete 'test:test01', 'r02', 'f2' Took 0.0252 seconds

清空表test01的数据。

注意第二个仅清除数据，第一个会清除表分区。

truncate 'test:test01'

hbase:016:0> truncate_preserve 'test:test01'
Truncating 'test:test01' table (it may take a while):
Disabling table...
Truncating table...
Took 3.4415 seconds

HBase简单应用

现有以下关系型数据库中的表和数据，要求将其转换为适合于HBase存储的表，绘出表格，然后插入数据，并查看数据。建议用列族的方式来创建。

表1 学生表（Student）

学号（S_No）	姓名（S_Name）	年龄（S_Age）
2018001	Lily	21
2018002	Jacky	22
2018003	Mouse	21

表2 课程表（Course）

课程号（C_No）	课程名（C_Name）
123001	English
123002	Computer

表3 选课表（SC）

学号（SC_Sno）	课程号（SC_Cno）	成绩（SC_Score）
2018001	123001	89
2018001	123002	78
2018002	123001	90
2018002	123002	69
2018003	123001	78
2018003	1230023	65

提示：

构造的HBase表格可以为（仅供参考）：

(1) 主键的列名是随机分配的，因此无需创建主键列。

(2) 创建表：create 表名，字段名1 / 列族1，字段名2 / 列族2，……

create ‘scs’, ‘basic_info’, ‘score’

(3) 插入数据：
        put 表名，rowkey，字段名1，字段值1
        put 表名，rowkey，字段名2，字段值2
        …

put 'scs', 's001', 'basic_info:sno', '2018001'
put 'scs', 's002', 'basic_info:sno', '2018002'
put 'scs', 's003', 'basic_info:sno', '2018003'

put 'scs', 's001', 'basic_info:sname', 'Lily'
put 'scs', 's002', 'basic_info:sname', 'Jacky'
put 'scs', 's003', 'basic_info:sname', 'Mouse'

put 'scs', 's001', 'basic_info:sage', '21'
put 'scs', 's002', 'basic_info:sage', '22'
put 'scs', 's003', 'basic_info:sage', '21'

put 'scs', 's001', 'score:English', '89'
put 'scs', 's001', 'score:Computer', '78'

put 'scs', 's002', 'score:English', '90'
put 'scs', 's002', 'score:Computer', '69'

put 'scs', 's003', 'score:English', '78'
put 'scs', 's003', 'score:Computer', '65'

(4) 查看数据：scan 表名

scan 'scs'

hbase:045:0> scan 'scs'
ROW                                          COLUMN+CELL
 s001                                        column=basic_info:sage, timestamp=2022-04-24T11:46:08.761, value=21
 s001                                        column=basic_info:sname, timestamp=2022-04-24T11:46:08.627, value=Lily
 s001                                        column=basic_info:sno, timestamp=2022-04-24T11:46:08.466, value=2018001
 s001                                        column=score:Computer, timestamp=2022-04-24T11:46:08.951, value=78
 s001                                        column=score:English, timestamp=2022-04-24T11:46:08.921, value=89
 s002                                        column=basic_info:sage, timestamp=2022-04-24T11:46:08.800, value=22
 s002                                        column=basic_info:sname, timestamp=2022-04-24T11:46:08.667, value=Jacky
 s002                                        column=basic_info:sno, timestamp=2022-04-24T11:46:08.520, value=2018002
 s002                                        column=score:Computer, timestamp=2022-04-24T11:46:09.035, value=69
 s002                                        column=score:English, timestamp=2022-04-24T11:46:09.003, value=90
 s003                                        column=basic_info:sage, timestamp=2022-04-24T11:46:08.858, value=21
 s003                                        column=basic_info:sname, timestamp=2022-04-24T11:46:08.706, value=Mouse
 s003                                        column=basic_info:sno, timestamp=2022-04-24T11:46:08.570, value=2018003
 s003                                        column=score:Computer, timestamp=2022-04-24T11:46:10.323, value=65
 s003                                        column=score:English, timestamp=2022-04-24T11:46:09.094, value=78
3 row(s)
Took 0.0259 seconds

如果在学生表中为学生增加一项“联系电话（S_Tel）”，如何完成？插入数据后，查看数据。（提示：使用列族，添加列限定符）

put 'scs', 's001', 'basic_info:tel', '12345'

hbase:046:0> put 'scs', 's001', 'basic_info:tel', '12345'
Took 0.0117 seconds

hbase:048:0> get 'scs', 's001'
COLUMN                     CELL
 basic_info:sage           timestamp=2022-04-24T11:46:08.761, value=21
 basic_info:sname          timestamp=2022-04-24T11:46:08.627, value=Lily
 basic_info:sno            timestamp=2022-04-24T11:46:08.466, value=2018001
 basic_info:tel            timestamp=2022-04-24T11:48:32.278, value=12345
 score:Computer            timestamp=2022-04-24T11:46:08.951, value=78
 score:English             timestamp=2022-04-24T11:46:08.921, value=89
1 row(s)
Took 0.0154 seconds

若查看rowkey为“s001”（值是示例，根据你自己设置的rowkey值进行查询）的所有课程成绩（SC表），如何完成？（提示：get 表名 key值）

get 'scs', 's001', 'score'

hbase:050:0> get 'scs', 's001', 'score'
COLUMN                     CELL
 score:Computer            timestamp=2022-04-24T11:46:08.951, value=78
 score:English             timestamp=2022-04-24T11:46:08.921, value=89
1 row(s)
Took 0.0104 seconds

思考如何对成绩表按照成绩进行降序排序呢？（仅写出解决思路即可）

<不会>

HBase基本操作

常用HBase Shell命令

HBase Shell基本操作

HBase简单应用

HBase与传统关系型数据库的对比
